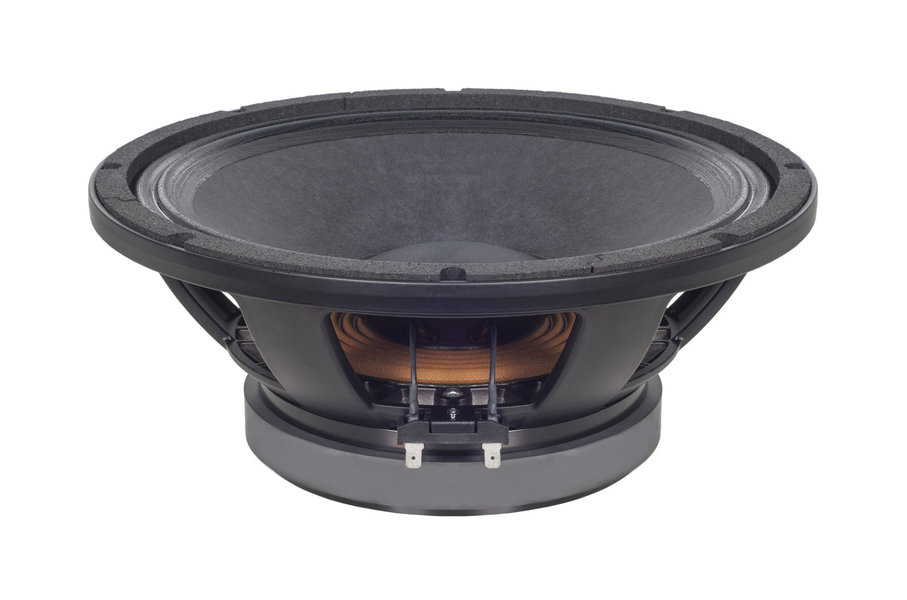

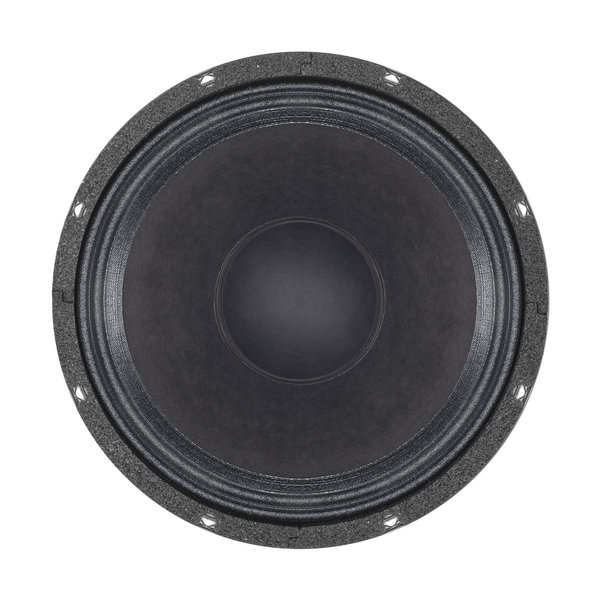

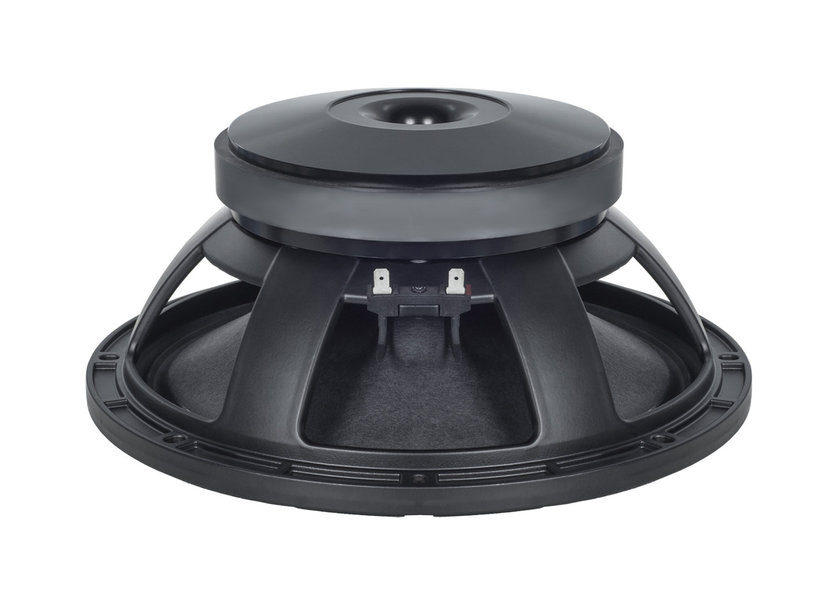

12MH32

12MH32

$240.00 USD
$269.99 USD $240.00 USD
Sale Sold out
free shipping

12MH32

Continuous power handling
Voice coil diameter
Magnet material




Features

  • 800 W continuous program power capacity
  • 76 mm (3 in) copper voice coil
  • 50 - 3000 Hz response
  • 101 dB sensitivity
  • Aluminium demodulating ring allows a very low distortion figure

Specifications

  • Nominal Diameter320 mm (12.0 in)
  • Nominal Impedance8 Ω
  • Minimum Impedance6.5 Ω
  • Nominal Power Handling1400 W
  • Continuous Power Handling2800 W
  • Sensitivity3101.0 dB
  • Frequency Range50 - 3000 Hz
  • Voice Coil Diameter76 mm (3.0 in)
  • Winding MaterialCopper
  • Former MaterialGlass Fibre
  • Winding Depth14.0 mm (0.55 in)
  • Magnetic Gap Depth8.0 mm (0.31 in)
  • Flux Density1.4 T

Design

  • Surround ShapeDouble Roll
  • Cone ShapeRadial
  • Magnet MaterialFerrite
  • SpiderSingle
  • Pole DesignT-Pole
  • Woofer Cone TreatmentNone

Parameters4

  • Resonance Frequency53 Hz
  • Re5.2 Ω
  • Qes0.2
  • Qms7.2
  • Qts0.19
  • Vas63.0 dm3 (2.2 ft3)
  • Sd522.0 cm2 (80.9 in2)
  • η₀4.8 %
  • Xmax5.0 mm
  • Xvar7.0 mm
  • Mms54.0 g
  • Bl22.3 Txm
  • Le0.83 mH
  • EBP265
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minumum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
  • Thiele-Small parameters are measured after a high level 20 Hz sine wave preconditioning test.
