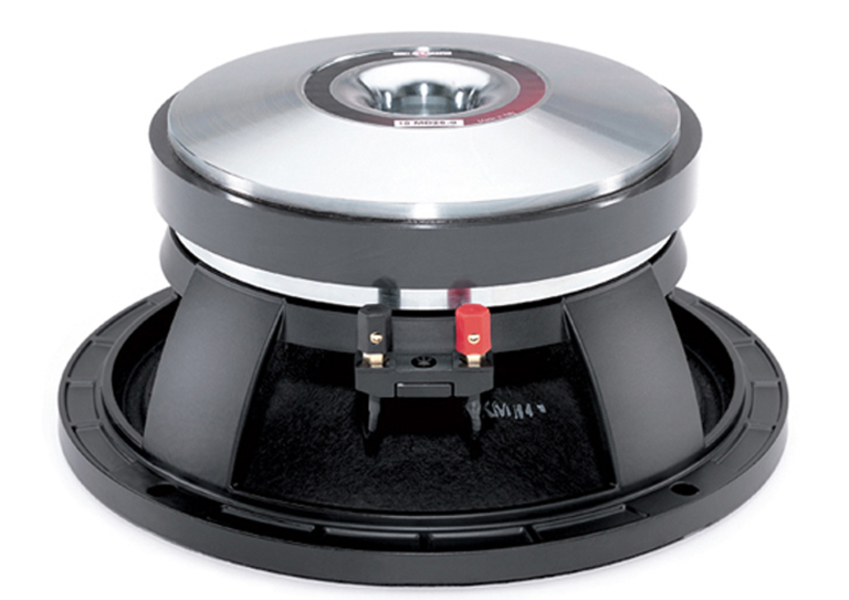

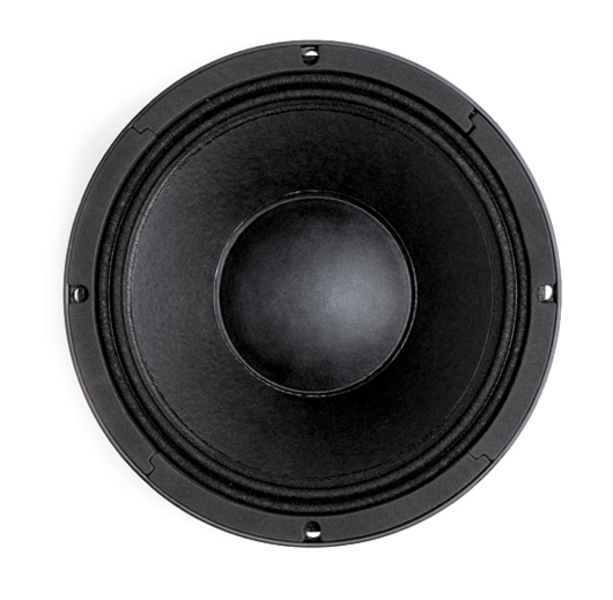

B&C 10MD26

B&C 10MD26

$209.99 USD
$255.55 USD $209.99 USD
Sale Sold out
Continuous power handling
Voice coil diameter
Magnet material




Features

  • 700 W continuous program power capacity
  • 76 mm (3 in) aluminium voice coil
  • 80 - 4000 Hz response
  • 100 dB sensitivity

Specifications

  • Nominal Diameter250 mm (10.0 in)
  • Nominal Impedance8 Ω
  • Minimum Impedance7.2 Ω
  • Nominal Power Handling1350 W
  • Continuous Power Handling2700 W
  • Sensitivity3100.0 dB
  • Frequency Range80 - 4000 Hz
  • Voice Coil Diameter76 mm (3.0 in)
  • Winding MaterialAluminium
  • Former MaterialGlass Fibre
  • Winding Depth11.0 mm (0.43 in)
  • Magnetic Gap Depth8.0 mm (0.31 in)
  • Flux Density1.45 T

Design

  • Surround ShapeDouble Roll
  • Cone ShapeExponential
  • Magnet MaterialFerrite
  • SpiderSingle
  • Pole DesignT-Pole
  • Woofer Cone TreatmentNone

Parameters4

  • Resonance Frequency76 Hz
  • Re5.8 Ω
  • Qes0.22
  • Qms4.8
  • Qts0.21
  • Vas20.0 dm3 (0.71 ft3)
  • Sd320.0 cm2 (49.1 in2)
  • η₀3.9 %
  • Xmax1.5 mm
  • Xvar4.5 mm
  • Mms31.0 g
  • Bl19.6 Txm
  • Le1.2 mH
  • EBP345 Hz
