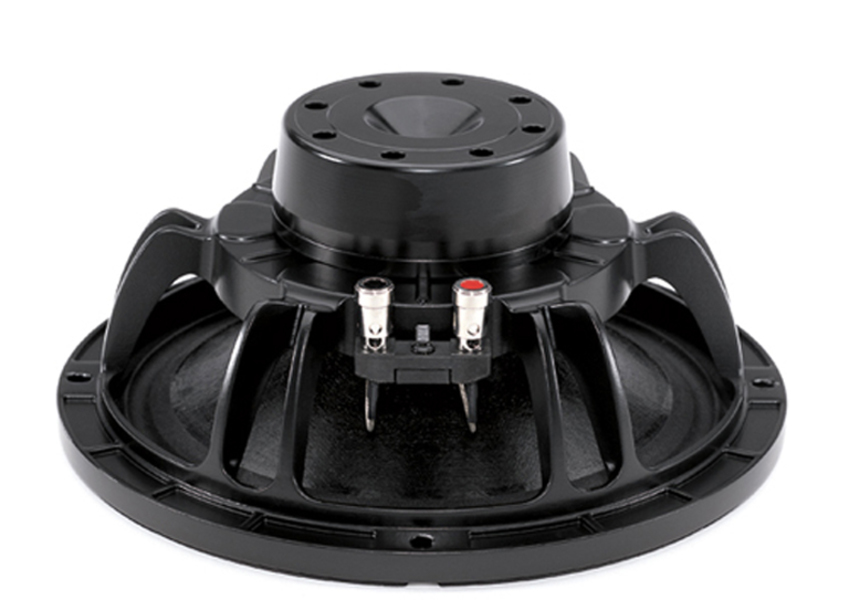

B&C 10NDL64 10" Pro 500 Watts Neodymium Woofer 8-Ohm Neo Replacement Speaker
B&C 10NDL64 10" Pro 500 Watts Neodymium Woofer 8-Ohm Neo Replacement Speaker
Regular price
$150.00 USD
Regular price
$200.00 USD
Sale price
$150.00 USD
Unit price
per
Couldn't load pickup availability

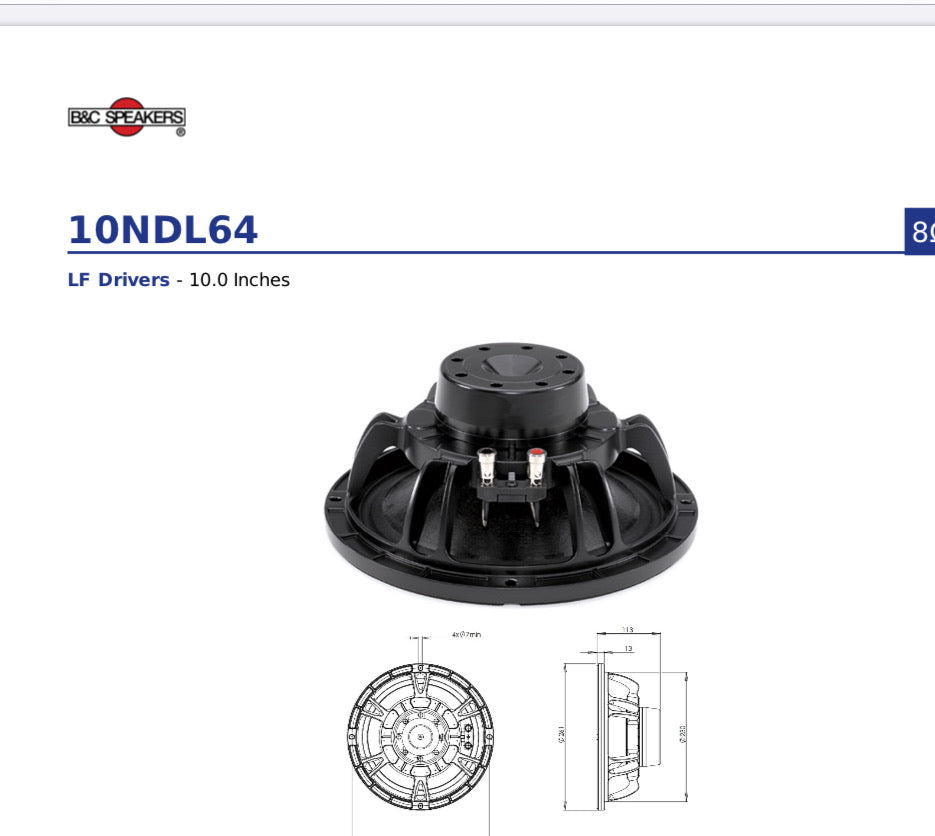

10NDL64 10NDL64 8Ω LF Drivers - 10.0 Inches
500 W continuous program power capacity 64 mm (2.5 in) aluminium voice coil
50 - 3000 Hz response
97 dB sensitivity
Neodymium magnet allows a very light yet powerful motor assembly
Ventilated voice coil gap for reduced power compression
LF Drivers 10.0 inches
Continuous power handling
Voice coil diameter
Magnet material
Features
- 500 W continuous program power capacity
- 64 mm (2.5 in) aluminium voice coil
- 50 - 3000 Hz response
- 97 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Ventilated voice coil gap for reduced power compression
Specifications
- Nominal Diameter250 mm (10.0 in)
- Nominal Impedance8 Ω
- Minimum Impedance7.0 Ω
- Nominal Power Handling1250 W
- Continuous Power Handling2500 W
- Sensitivity397.0 dB
- Frequency Range50 - 3000 Hz
- Voice Coil Diameter64 mm (2.5 in)
- Winding MaterialAluminium
- Former MaterialGlass Fibre
- Winding Depth14.0 mm (0.55 in)
- Magnetic Gap Depth8.0 mm (0.31 in)
- Flux Density1.25 T
Design
- Surround ShapeDouble Roll
- Cone ShapeExponential
- Magnet MaterialNeodymium Inside Slug
- SpiderSingle
- Pole DesignStraight Pole
- Woofer Cone TreatmentTWP Waterproof Both Sides
- Recommended Enclosure26.0 dm3 (0.92 ft3)
- Recommended Tuning62 Hz
Parameters4
- Resonance Frequency56 Hz
- Re5.7 Ω
- Qes0.29
- Qms3.4
- Qts0.26
- Vas31.0 dm3 (1.1 ft3)
- Sd320.0 cm2 (50.0 in2)
- η₀1.8 %
- Xmax6.0 mm
- Xvar7.0 mm
- Mms37.0 g
- Bl16.2 Txm
- Le0.9 mH
- EBP193 Hz
