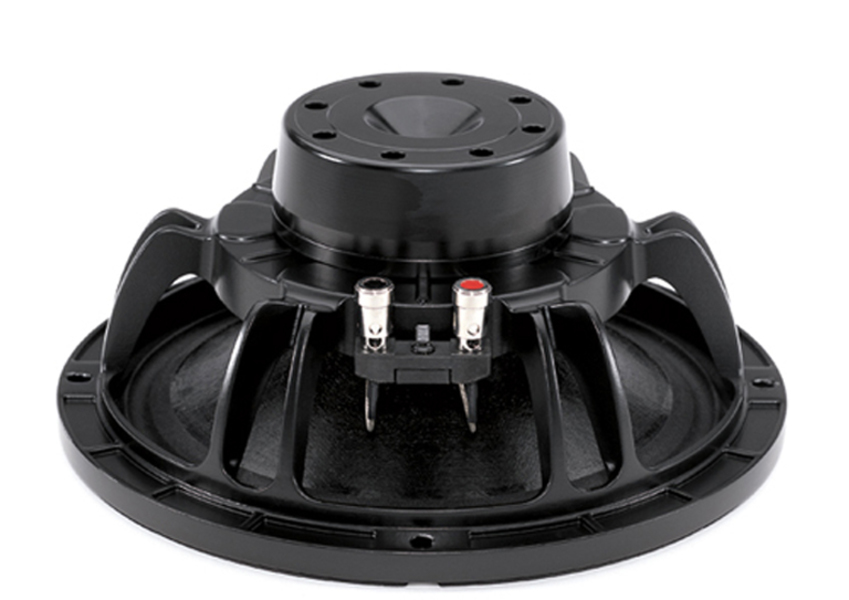

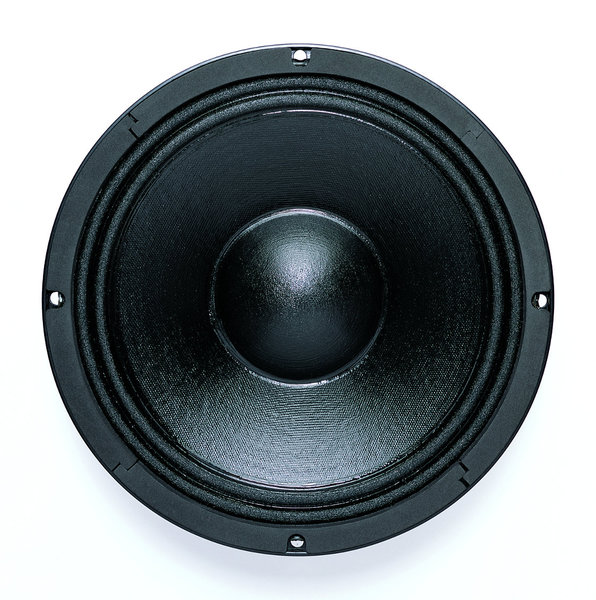

B&C 10NW64 10" Neodymium Woofer

B&C 10NW64 10" Neodymium Woofer

$160.00 USD
$265.48 USD $160.00 USD
Sale Sold out
 More payment options

Pickup available at 216 Pine DR

Usually ready in 24 hours

10NW64600 W continuous program power capacity 64 mm (2.5 in) copper voice coil
60 - 2500 Hz response
96 dB sensitivity
Neodymium magnet allows a very light yet powerful motor assembly
Shorting copper cap for extended HF response Ventilated voice coil gap for reduced power

LF Drivers 10.0 inches

compare

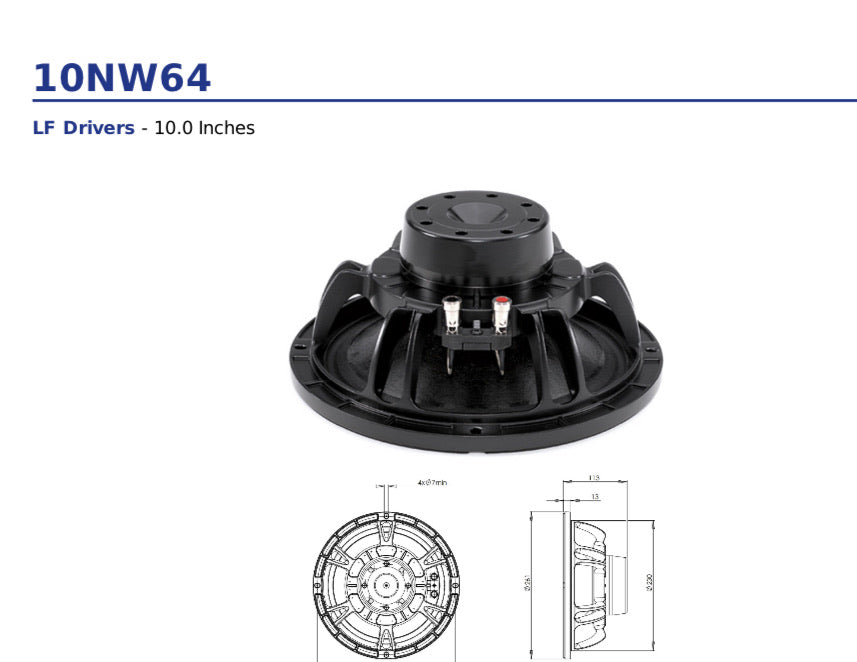

Drawing
Datasheet
back
10ndl64%200010ndl_10nw64
Continuous power handling
Voice coil diameter
Magnet material





Features

  • 600 W continuous program power capacity
  • 64 mm (2.5 in) copper voice coil
  • 60 - 2500 Hz response
  • 96 dB sensitivity
  • Neodymium magnet allows a very light yet powerful motor assembly
  • Shorting copper cap for extended HF response
  • Ventilated voice coil gap for reduced power compression

Specifications

  • Nominal Diameter250 mm (10.0 in)
  • Nominal Impedance8 Ω
  • Minimum Impedance6.5 Ω
  • Nominal Power Handling1300 W
  • Continuous Power Handling2600 W
  • Sensitivity396.0 dB
  • Frequency Range60 - 2500 Hz
  • Voice Coil Diameter64 mm (2.5 in)
  • Winding MaterialCopper
  • Former MaterialGlass Fibre
  • Winding Depth16.0 mm (0.62 in)
  • Magnetic Gap Depth8.0 mm (0.31 in)
  • Flux Density1.25 T

Design

  • Surround ShapeDouble Roll
  • Cone ShapeExponential
  • Magnet MaterialNeodymium Inside Slug
  • SpiderSingle
  • Pole DesignStraight Pole
  • Woofer Cone TreatmentTWP Waterproof Both Sides
  • Recommended Enclosure26.0 dm3 (0.92 ft3)
  • Recommended Tuning59 Hz

Parameters4

  • Resonance Frequency59 Hz
  • Re5.2 Ω
  • Qes0.27
  • Qms4.3
  • Qts0.26
  • Vas22.0 dm3 (0.78 ft3)
  • Sd320.0 cm2 (49.6 in2)
  • η₀1.6 %
  • Xmax6.0 mm
  • Xvar5.5 mm
  • Mms47.0 g
  • Bl18.3 Txm
  • Le0.65 mH
  • EBP218 Hz
