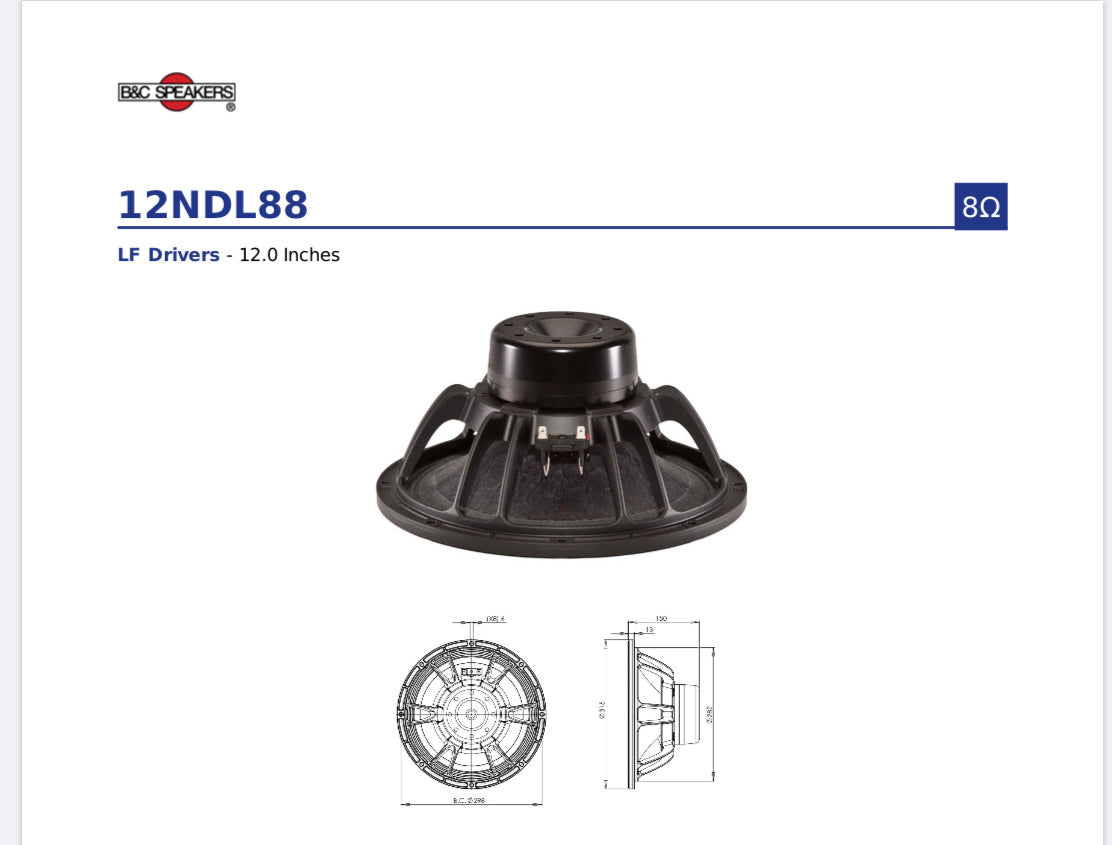

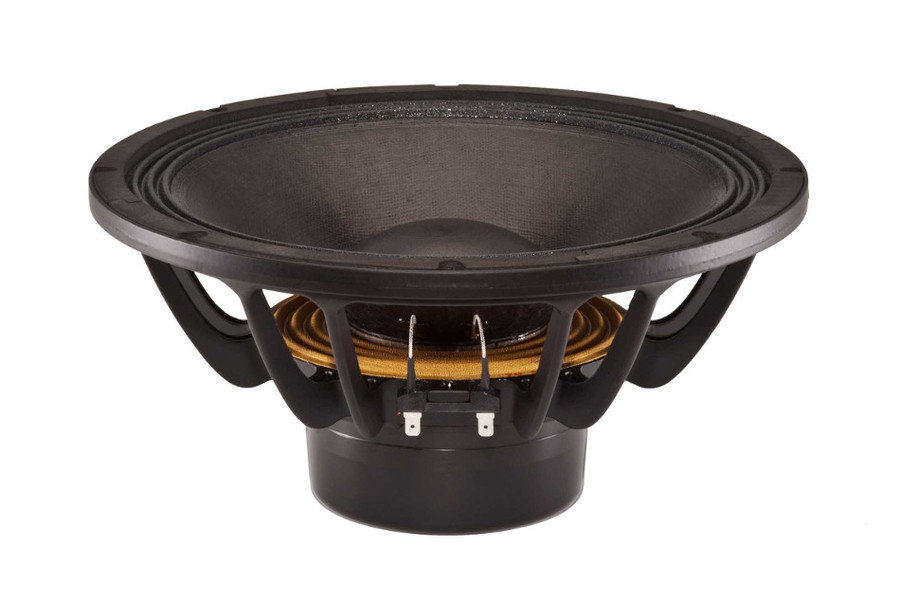

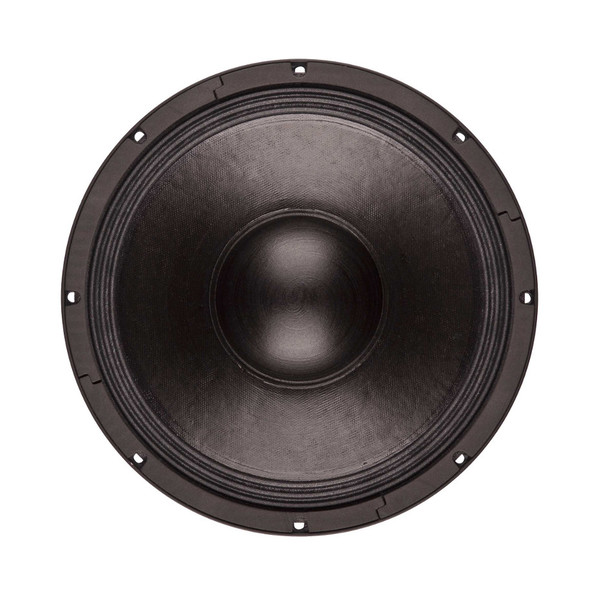

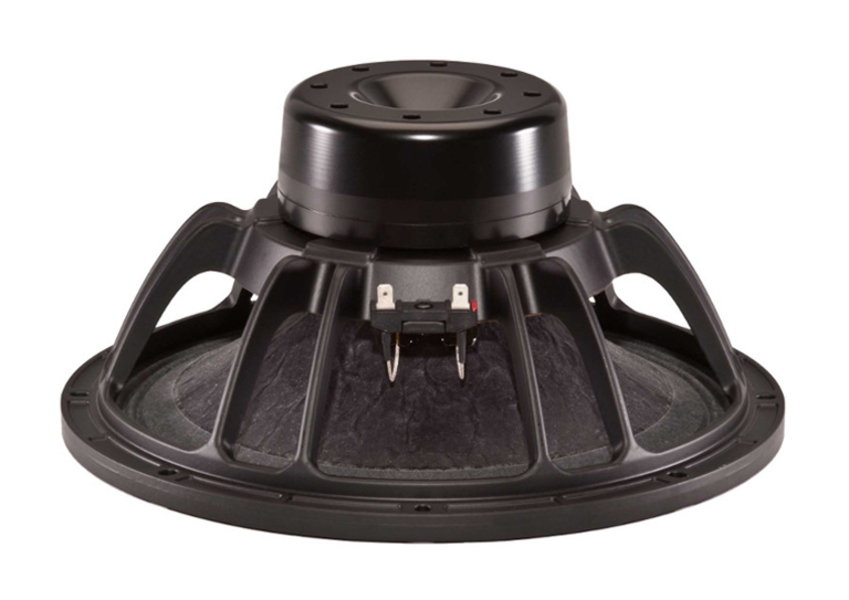

B&C 12NDL88 12" 1400W Neodymium Pro Audio Woofer 8-Ohm MidBass Speaker Subwoofer
B&C 12NDL88 12" 1400W Neodymium Pro Audio Woofer 8-Ohm MidBass Speaker Subwoofer
Couldn't load pickup availability
12NDL88
1400 W continuous program power capacity 88 mm (3.5 in) aluminium voice coil
50 - 3000 Hz response
98 dB sensitivity
Aluminium demodulating ring allows a very low distortion figure
Double silicone spider with optimized compliance
Ventilated voice coil gap for reduced power compression
The NDL88 series is perfectly balanced for the loudspeaker systems of today. Incorporating a high temperature neodymium magnet inside the 3.5” (88mm) voice coil reduces the amount of steel needed in the motor structure, saving cost and weight. Unexpected low frequency output and midrange extension to meet with almost any driver for two way applications is the hallmark of this new performance-oriented woofer line from B&C Speakers. Do more, with less, with the NDL88 seri LF Drivers 12.0 inches
The NDL88 series is perfectly balanced for the loudspeaker systems of today. Incorporating a high temperature neodymium magnet inside the 3.5” (88mm) voice coil reduces the amount of steel needed in the motor structure, saving cost and weight. Unexpected low frequency output and midrange extension to meet with almost any driver for two way applications is the hallmark of this new performance-oriented woofer line from B&C Speakers. Do more, with less, with the NDL88 series.
Features
- 1400 W continuous program power capacity
- 88 mm (3.5 in) aluminium voice coil
- 50 - 3000 Hz response
- 98 dB sensitivity
- Aluminium demodulating ring allows a very low distortion figure
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
Specifications
- Nominal Diameter320 mm (12.0 in)
- Nominal Impedance8 Ω
- Minimum Impedance6.0 Ω
- Nominal Power Handling1700 W
- Continuous Power Handling21400 W
- Sensitivity398.0 dB
- Frequency Range50 - 3000 Hz
- Voice Coil Diameter88 mm (3.5 in)
- Winding MaterialAluminium
- Former MaterialGlass Fibre
- Winding Depth21.0 mm (0.85 in)
- Magnetic Gap Depth10.0 mm (0.4 in)
- Flux Density1.15 T
Design
- Surround ShapeTriple Roll
- Cone ShapeExponential
- Magnet MaterialNeodymium Inside Slug
- SpiderDouble Silicone
- Pole DesignT-Pole
- Woofer Cone TreatmentWP Waterproof Front Side
- Recommended Enclosure40.0 dm3 (1.41 ft3)
- Recommended Tuning65 Hz
Parameters4
- Resonance Frequency51 Hz
- Re5.0 Ω
- Qes0.29
- Qms5.0
- Qts0.27
- Vas52.0 dm3 (1.84 ft3)
- Sd522.0 cm2 (80.9 in2)
- η₀2.3 %
- Xmax8.0 mm
- Xvar9.5 mm
- Mms71.0 g
- Bl19.9 Txm
- Le1.3 mH
- EBP175 Hz
