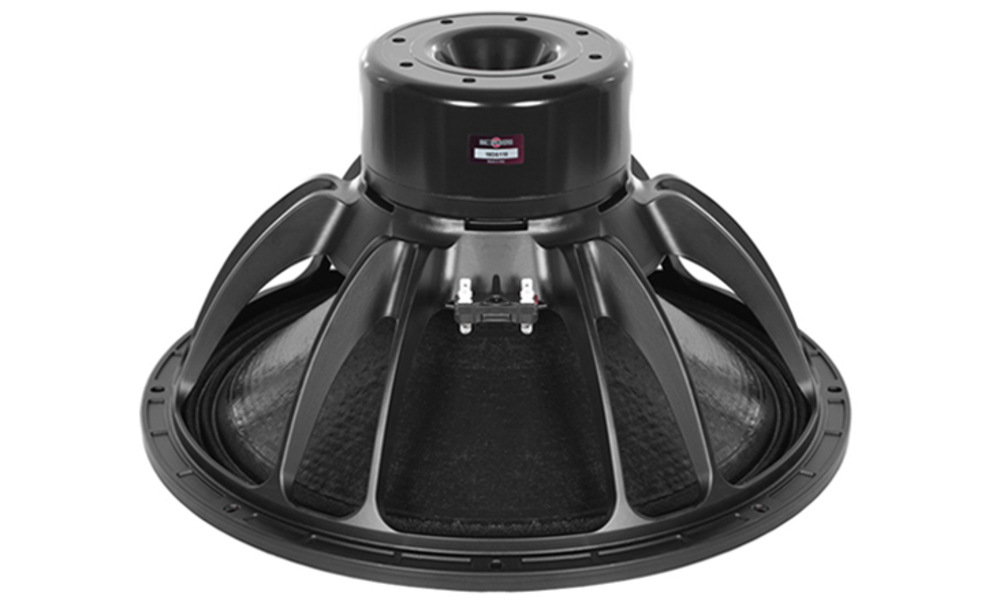

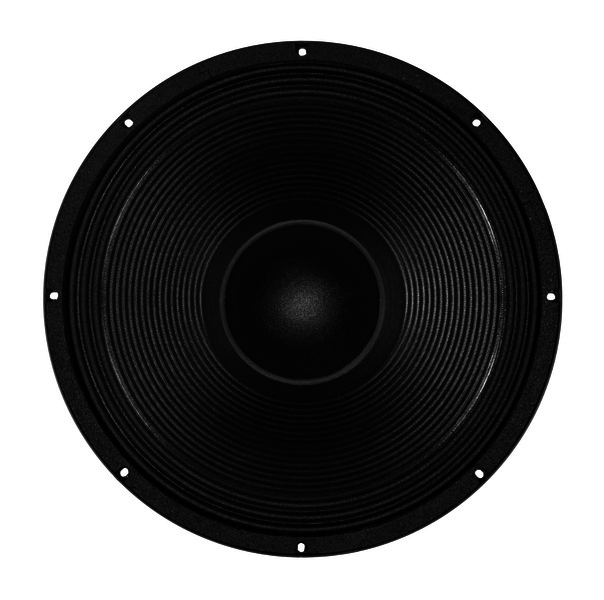

B&C 18DS115-8 18" Neodymium Subwoofer Speaker 3400W 8-Ohm Bass Sub 35-500 Hz
B&C 18DS115-8 18" Neodymium Subwoofer Speaker 3400W 8-Ohm Bass Sub 35-500 Hz
Regular price
$599.99 USD
Regular price
$650.00 USD
Sale price
$599.99 USD
Unit price
per
Couldn't load pickup availability
back3400 W continuous program power capacity 116 mm (4.5 in) four layer aluminum voice coil 30 - 500 Hz response
98 dB sensitivity
Double silicone spider with optimized compliance
Ventilated voice coil gap for reduced power compression
Aluminium demodulating ring for very low distortion
This next evolution subwoofer uses a new, longer, four layer aluminum voice coil. The result is more energy in the gap, less heat, higher sensitivity, higher power handling, lower distortion and better overall performance. The 18DS115 features a 40mm long, 4.5 inch diameter (116mm) Copper Clad Aluminum Wire voice coil. With a 1700watt AES power rating, 98 dB sensitivity, and over 14.0mm of Xvar, this high energy subwoofer is a significant step forward
98 dB sensitivity
Double silicone spider with optimized compliance
Ventilated voice coil gap for reduced power compression
Aluminium demodulating ring for very low distortion
This next evolution subwoofer uses a new, longer, four layer aluminum voice coil. The result is more energy in the gap, less heat, higher sensitivity, higher power handling, lower distortion and better overall performance. The 18DS115 features a 40mm long, 4.5 inch diameter (116mm) Copper Clad Aluminum Wire voice coil. With a 1700watt AES power rating, 98 dB sensitivity, and over 14.0mm of Xvar, this high energy subwoofer is a significant step forward
next
Continuous power handling
Voice coil diameter
Magnet material
This next evolution subwoofer uses a new, longer, four layer aluminum voice coil. The result is more energy in the gap, less heat, higher sensitivity, higher power handling, lower distortion and better overall performance. The 18DS115 features a 40mm long, 4.5 inch diameter (116mm) Copper Clad Aluminum Wire voice coil. With a 1700watt AES power rating, 98 dB sensitivity, and over 14.0mm of Xvar, this high energy subwoofer is a significant step forward from similar models in the B&C range.
Features
- 3400 W continuous program power capacity
- 116 mm (4.5 in) four layer aluminum voice coil
- 30 - 500 Hz response
- 98 dB sensitivity
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
- Aluminium demodulating ring for very low distortion
Specifications
- Nominal Diameter460 mm (18.0 in)
- Nominal Impedance8 Ω
- Minimum Impedance7.0 Ω
- Nominal Power Handling11700 W
- Continuous Power Handling23400 W
- Sensitivity398.0 dB
- Frequency Range30 - 500 Hz
- Voice Coil Diameter116 mm (4.5 in)
- Winding MaterialAluminium
- Former MaterialGlass Fibre
- Winding Depth40.0 mm (1.57 in)
- Magnetic Gap Depth14.0 mm (0.55 in)
- Flux Density0.8 T
Design
- Surround ShapeTriple Roll
- Cone ShapeRadial
- Magnet MaterialNeodymium Inside Slug
- SpiderDouble Silicone
- Pole DesignT-Pole
- Woofer Cone TreatmentTWP Waterproof Both Sides
- Recommended Enclosure100.0 dm3 (3.53 ft3)
- Recommended Tuning40 Hz
Parameters4
- Resonance Frequency30 Hz
- Re5.0 Ω
- Qes0.21
- Qms4.3
- Qts0.2
- Vas168.0 dm3 (5.93 ft3)
- Sd1210.0 cm2 (187.55 in2)
- η₀2.2 %
- Xmax16.5 mm
- Xvar14.0 mm
- Mms330.0 g
- Bl39.0 Txm
- Le3.85 mH
- EBP142 Hz
