B&C-18ipal

B&C-18ipal

$1,299.00 USD
$1,400.00 USD $1,299.00 USD
Sale Sold out

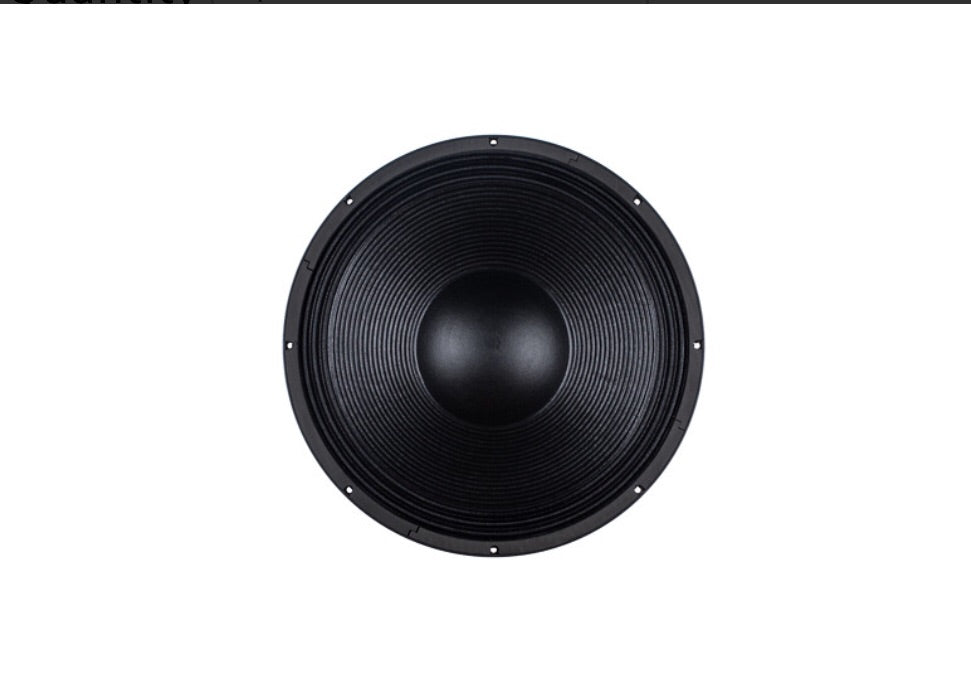

  • B&C 18ipal-8 18" Neodymium Subwoofer Speaker Driver 3400W 2-ohm  4.5" Voice Coil. Condition is New.
  • 18ipal%200018ipal%200118ipal%2002
    Continuous power handling
    Voice coil diameter
    Magnet material

    When used with the Powersoft IPAL power amp modules, the 18IPAL can provide extreme output in a very small, dependable package. For more information, visit the Powersoft Website







    Specifications

    • Nominal Diameter460 mm (18.0 in)
    • Nominal Impedance2 Ω
    • Minimum Impedance2.1 Ω
    • Nominal Power Handling11700 W
    • Continuous Power Handling23400 W
    • Sensitivity397.0 dB
    • Frequency Range32 - 1000 Hz
    • Voice Coil Diameter116 mm (4.5 in)
    • Winding MaterialAluminium
    • Former MaterialGlass Fibre
    • Winding Depth44.0 mm (1.7 in)
    • Magnetic Gap Depth12.0 mm (0.47 in)
    • Flux Density1.5 T

    Design

    • Surround ShapeTriple Roll
    • Cone ShapeRadial
    • Magnet MaterialNeodymium Inside Slug
    • SpiderDouble Silicone
    • Pole DesignT-Pole
    • Woofer Cone TreatmentTWP Waterproof Both Sides
    • Recommended Enclosure150.0 dm3 (5.3 ft3)
    • Recommended Tuning35 Hz

    Parameters4

    • Resonance Frequency32 Hz
    • Re1.3 Ω
    • Qes0.14
    • Qms4.2
    • Qts0.14
    • Vas164.0 dm3 (5.8 ft3)
    • Sd1210.0 cm2 (187.6 in2)
    • η₀3.3 %
    • Xmax20.0 mm
    • Xvar15.0 mm
    • Mms330.0 g
    • Bl24.5 Txm
    • Le0.65 mH
    • EBP228 Hz
