120 W

Continuous power handling

1.7 in (44 mm)

Voice coil diameter

Polyimide

Diaphragm material

1.0 in (25 mm)

Throat diameter

Last viewed products

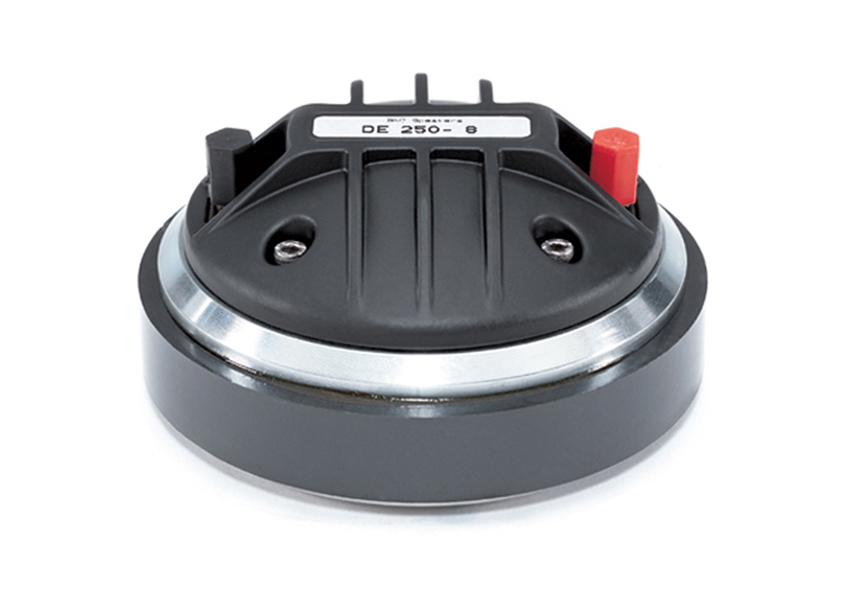

DE250

Features

120 W continuous program power capacity

1' horn throat diameter

44 mm (1.7 in) aluminium voice coil

Polyimide diaphragm

1000 - 18000 Hz response

108.5 dB sensitivity

Specifications

Specifications1

Throat Diameter

25 mm (1.0 in)

Nominal Impedance

8 Ω

Minimum Impedance

7.8 Ω

Nominal Power Handling2

60 W

Continuous Power Handling3

120 W

Sensitivity4

108.5 dB

Frequency Range

1.0 - 18.0 kHz

Recommended Crossover5

1.6 kHz

Voice Coil Diameter

44 mm (1.7 in)

Winding Material

Aluminium

Inductance

0.11 mH

Diaphragm Material

Polyimide

Flux Density

1.85 T

Magnet Material

Ferrite B&C DE250, 8 Ohm,fe Hf Driver DE250-8. Condition is New. Shipped with USPS First Class.

Driver mounted on B&C ME 45 horn.

2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated minimum impedance.

Power on Continuous Program is defined as 3 dB greater than the Nominal rating.

Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.

12 dB/oct. or higher slope high-pass filter.

nches

SPECIFICATIONS1

Throat Diameter

Nominal Impedance Minimum Impedance Nominal Power Handling2 Continuous Power Handling3 Sensitivity4

Frequency Range Recommended Crossover5 Voice Coil Diameter Winding Material Inductance

Diaphragm Material

Flux Density

Magnet Material

MOUNTING AND SHIPPING INFO

Two M6 holes 180° on 76 mm (3 in) diameter

Three M6 holes 120° on 57 mm (2.2 in) diameter

SERVICE KIT

25 mm (1.0 in) 8Ω 7.8 Ω 60 W 120 W

108.5 dB 1.0 - 18.0 kHz 1.6 kHz 44 mm (1.7 in) Aluminium 0.11 mH Polyimide 1.85 T Ferrite

Overall Diameter Depth

Net Weight Shipping Units Shipping Weight Shipping Box

120 mm (4.7 in) 62 mm (2.4 in) 2.1 kg (4.6 lb) 4 8.85 kg (19.51 lb)

265x135x170 mm (10.43x5.31x6.69 in)

Specifications

3x M6 Mounting Studs with bolts and washers included

1. Driver mounted on B&C ME 45 horn.

2. 2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated

minimum impedance.

3. Power on Continuous Program is defined as 3 dB greater than the Nominal rating.

4. Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.

5. 12 dB/oct. or higher slope high-pass filter.

B&C Speakers s.
