TARAMPS BASS 20000 1 CHANNEL 20000 WATTS RMS AMPLIFIER 1 OHM
TARAMPS BASS 20000 1 CHANNEL 20000 WATTS RMS AMPLIFIER 1 OHM
Couldn't load pickup availability

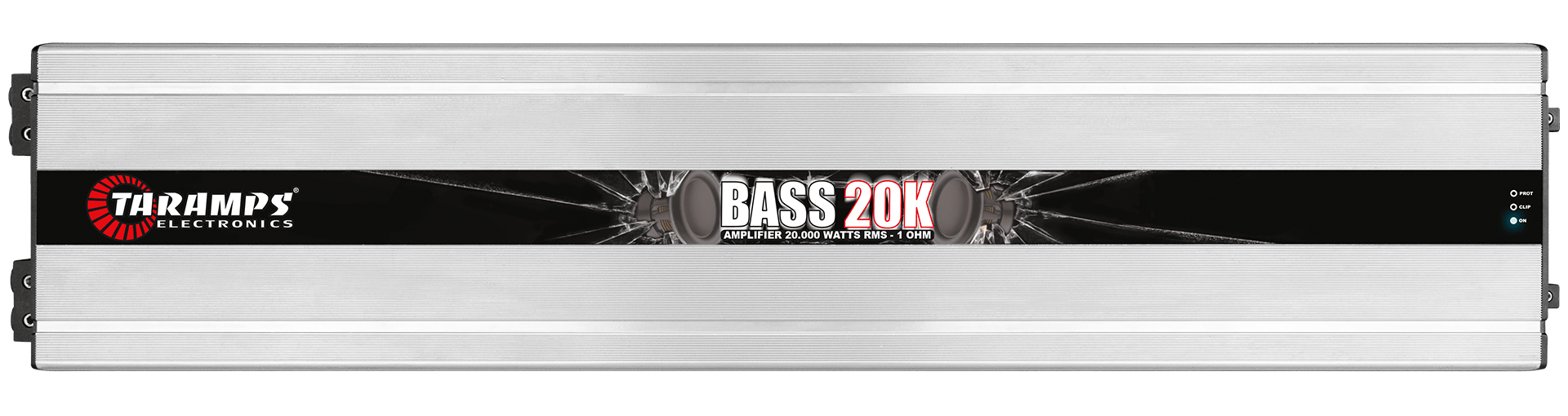

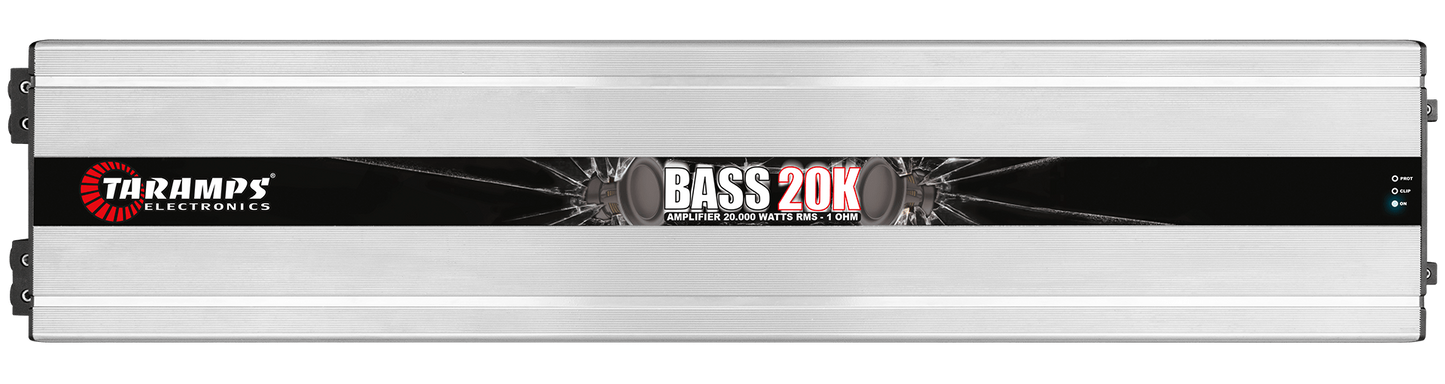

BASS 20K
The BASS 20K amplifier module from Taramps was carefully developed with the highest technology, with high income and performance for automotive sound systems and aimed at subwoofer and bass responses, in the frequency range from 8Hz to 250Hz. It has a maximum power of 20000 Watts in 1 channel of 1 ohms, with customized adjustments according to the size of the trunk and the frequency of most prominent of each vehicle, through the BASS BOOST and the option of choosing the central frequency. This amplifier module can offer much more control of excessive displacement, through SUBSONIC FILTER, volume control and LOW PASS, to make your bass in the right measure. Welcome to the sound world of Taramps!

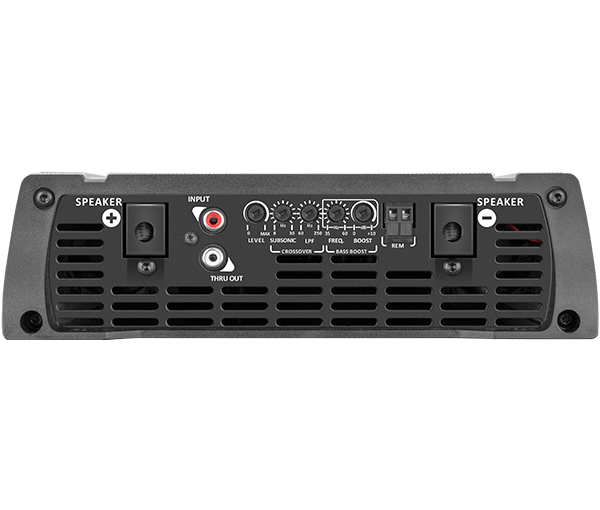

Functions, inputs and outputs
INPUT (R and L) Inputs of signals to be amplified. LEVEL It sets the amplifier input sensitivity. CROSSOVER with Filtro subsonic (HPF) and Filtro Low Pass (LPF). BASS BOOST with Freq. and BOOST. MONITORConnection to an accessory, which function is to monitor the amplifier and it is where all information from the indicator LEDs, will be displayed simultaneously.SPEAKEROutput (positive and negative) to transducers connection (speakers).

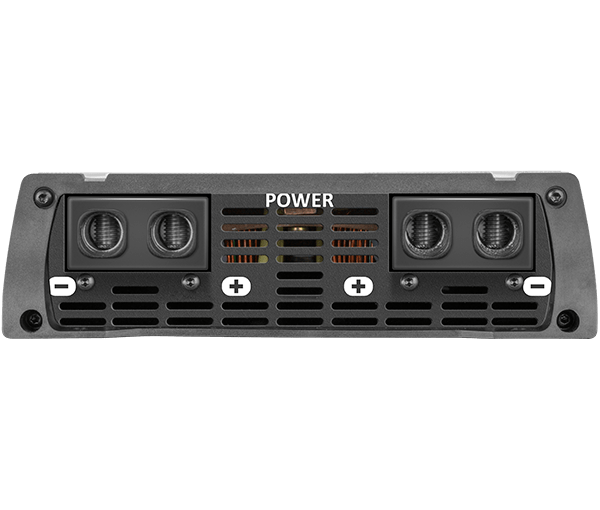

Power supply connector
Use a 2 x 70mm² (2/0 AWG) cable directly from the positivy and negative battery pole. It is reccomended that all cables must have tinned ends to improve electrical contact and all power inputs must be used.
Performance
Technical features
| Operation Class | Class D |
| Number of Channels | 01 |
| Maximum Power | @ 14,4 VDC - 1 Ohm: 20000 Watts RMS @ 14,4 VDC - 2 Ohm: 12000 Watts RMS |
| Input Sensitivity | 400mV |
| Frequency Response | 8Hz ~ 250Hz (-3dB) |
| Crossover High Pass (HPF) | 8Hz ~ 30Hz (-12dB/8ª) Variável |
| Crossover Low Pass(LPF) | 60Hz ~ 250KHz (-12dB/8ª) Variável |
| Protection System | Low impedance at output, low/high supply voltage and Thermal protection. |
| Maximum Music Consumption | 868A |
| Maximum Consumption in Sinusoidal Signal | 1736A |
| Dimensions(H X W X D) | 8.98" x 2.52" x 41.10" |
| Weight | 37.4lb |
