TARAMPS BASS 5K AMPLIFIER 1 OHM 5000W RMS -
TARAMPS BASS 5K AMPLIFIER 1 OHM 5000W RMS -
Couldn't load pickup availability
BASS 5K
The BASS 5K amplifier module from Taramps was carefully developed with the highest technology, with high income and performance for automotive sound systems and aimed at subwoofer and bass responses, in the frequency range from 8Hz to 250Hz. It has a maximum power of 5000 Watts in 1 channel of 1 ohms, with customized adjustments according to the size of the trunk and the frequency of most prominent of each vehicle, through the BASS BOOST and the option of choosing the central frequency. This amplifier module can offer much more control of excessive displacement, through SUBSONIC FILTER, volume control and LOW PASS, to make your bass in the right measure. Welcome to the sound world of Taramps!

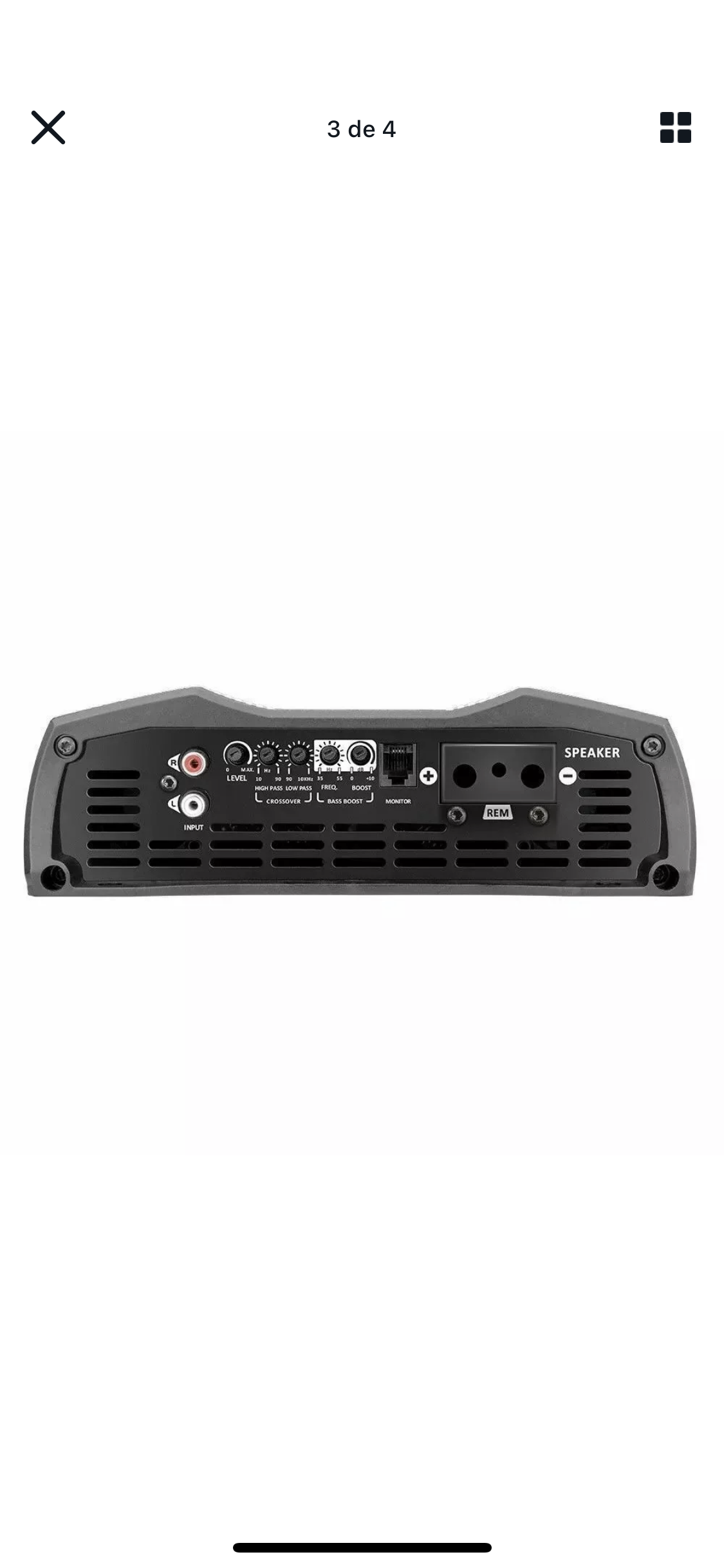

Functions, inputs and outputs
INPUT (R and L) Inputs of signals to be amplified. LEVEL It sets the amplifier input sensitivity. CROSSOVER with Filtro subsonic (HPF) and Filtro Low Pass (LPF). BASS BOOST with Freq. and BOOST. MONITORConnection to an accessory, which function is to monitor the amplifier and it is where all information from the indicator LEDs, will be displayed simultaneously.SPEAKEROutput (positive and negative) to transducers connection (speakers).
Power supply connector
It has two internal ventilation fans. The remote Head Unit output must be connected by a 0,75mm² (18 AWG) cable. We recommend keep the cables as short as possible and with tinned tips for best electrical contact> Circuit breakers should be installed as close to the battery.
Performance
Technical features
| Operation Class | Class D |
| Number of Channels | 01 |
| Maximum Power | @ 14,4 VDC - 1 Ohm: 5000 Watts RMS @ 14,4 VDC - 2 Ohm: 3200 Watts RMS |
| Input Sensitivity | 220mV |
| Frequency Response | 8Hz ~ 250Hz (-3dB) |
| Crossover High Pass (HPF) | 8Hz ~ 30Hz (-12dB/8ª) Variável |
| Crossover Low Pass(LPF) | 60Hz ~ 250KHz (-12dB/8ª) Variável |
| Protection System | Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection |
| Maximum Music Consumption | 209A |
| Maximum Consumption in Sinusoidal Signal | 418A |
| Dimensions(H X W X D) | 9.41" x 2.87" x 12.87" |
| Weight | 11lb |
