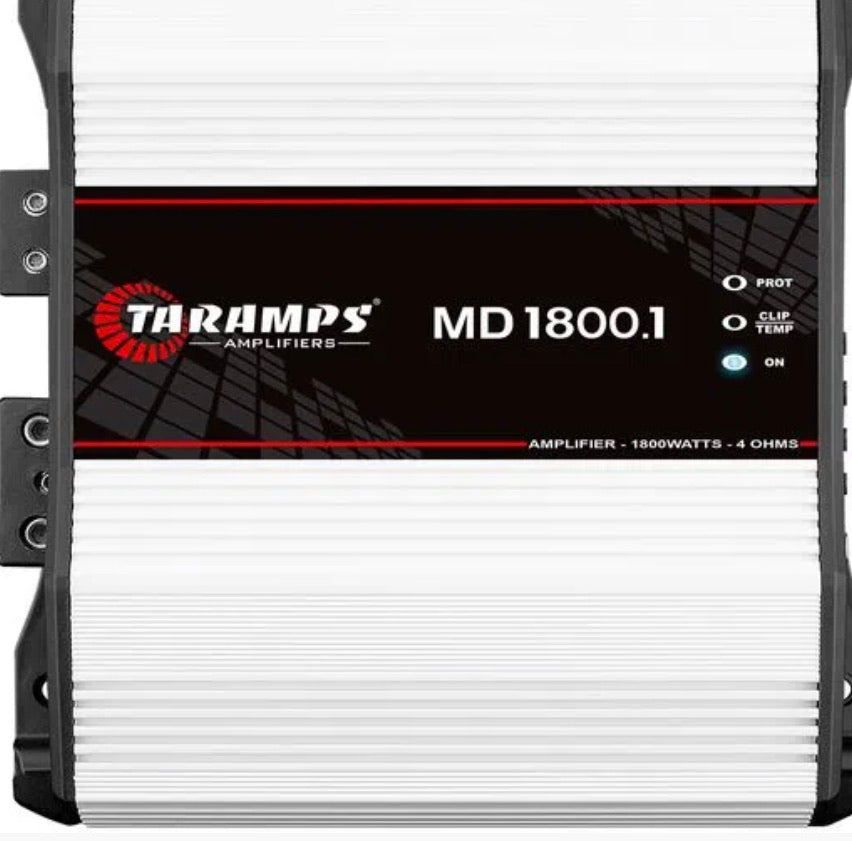

MD 1800.1
Taramps presents the amplifier module MD 1800.1 in the 1 ohm, 2 ohm and 4 ohm version. It has been carefully developed with the highest technology, offering high performance and quality for the most varied automotive sound systems, serving the entire frequency range, in other words, it is a FULL RANGE module. It is an amplifier classified as mono, has a channel with a maximum power of 1800 Watts RMS. Welcome to the sound world of Taramps.
Functions and Inputs
INPUT (R and L) Inputs of signals to be amplified. LEVEL It sets the amplifier input sensitivity, which allows an optimal adjustment to the output signals levels. CROSSOVER with High Pass and Low Pass. BASS BOOST Boost for bass levels in 50Hz, with variable gain up to 10,5 dB.
Output and Power Supply Connector
FAN has a internal ventilation fan, that should not be blocked. SPEAKER Output (positive and negative) to transducer's connection (speakers). POWER Use a 21mm² cable from the positivy and negative battery pole for negative power supply terminal and positive power supply terminal.
Performance
Technical features
| Operation Class | Class D |
| Number of Channels | 01 |
| Maximum Power | @ 12,6 VDC - 1 OHM: 1800W RMS @ 12,6 VDC - 2 OHMS: 1410W RMS |
| Input Sensitivity | 220mV |
| Frequency Response | 10Hz to 20KHz (-3dB) |
| Crossover High Pass (HPF) | 10Hz ~ 80Hz (-12dB/8ª) Variable |
| Crossover Low Pass(LPF) | 80Hz ~ Full (-12dB/8ª) Variable |
| Protection System | Output Short circuit / High or Low supply voltage / Thermal protection |
| Maximum Music Consumption | 91A |
| Maximum Consumption in Sinusoidal Signal | 182A |
| Dimensions(W X H X L) | 8.98" x 2.76" x 7.40" |
| Weight | 4.80lb |
