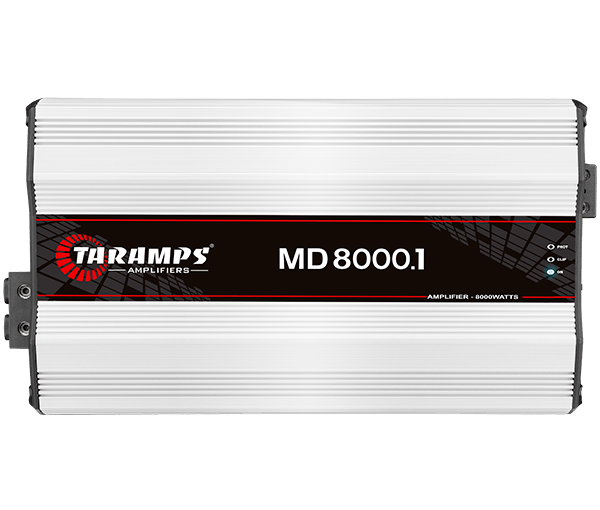

MD 8000.1
Taramps presents the amplifier module MD 8000.1 in the 1 ohm and 2 ohm version. It has been carefully developed with the highest technology, offering high performance and quality for the most varied automotive sound systems, serving the entire frequency range, in other words, it is a FULL RANGE module. It is an amplifier classified as mono, has a channel with a maximum power of 8000 Watts RMS. Welcome to the sound world of Taramps.
Functions and Inputs
INPUT (R and L) Inputs of signals to be amplified. LEVEL It sets the amplifier input sensitivity, which allows an optimal adjustment to the output signals levels. CROSSOVER with High Pass and Low Pass. BASS BOOST with Freq. and Boost.
Output and Power Supply Connector
FAN has one internal ventilation fan and cannot be blocked. SPEAKER Output (positive and negative) to transducer's connection (speakers). POWER Use a 70mm² cable from the positivy and negative battery pole for negative power supply terminal and positive power supply terminal.
Performance
Technical Features
Operation Class Class D Number of Channels 01 Maximum Power @ 12,6 VDC - 1 OHM: 8000W RMS
@ 12,6 VDC - 2 OHMS: 5120W RMSInput Sensitivity 220mV Frequency Response 10Hz ~ 10KHz (-3dB) Crossover High Pass (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable Crossover Low Pass(LPF) 90Hz ~ 10KHz (-12dB/8ª) Variable Protection System Short-Circuit to Output, short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection. Maximum Music Consumption 373.40A Maximum Consumption in Sinusoidal Signal 746.90A Dimensions(W X H X L) 8.98" x 2.76" x 16.50" Weight 13.42lb
